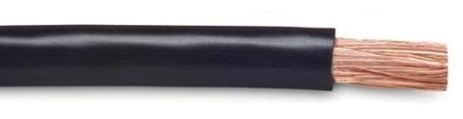

Battery Cable 50mm2 , Welding Cable 50mm2 , Starter Cable , battery cable
Application: Tri-ratedCable panel wiring is a high temperature, flame retardant cable designed foruse in the switch control, relay and instrumentation panels of power switchgearand for purposes such as internal connectors in rectifier equipment, motorstarters and controllers. Tri-rated Cable is sometimes referred to as BS6231Cable, H07V2-K or Panel Wire.
Standards:
BS6231 Type CK
UL Subj.758
CSA C22.2 No. 210
HD 21.7 S2*
Ul Style Number:
1015: 0.50mm² - 6.00mm²
1015(1028): 10.00mm²
1015(1283): 16.00mm² - 35.00mm²
1015(1284): 50.00mm² - 240.00mm
Conductor: Class 5flexible plain copper conductors to BS EN 60228:2005 (previously BS6360)
Insulation: PVC(Polyvinyl Chloride)
Insulation Colour: Black,
VoltageRating:
BS6231: 600/1000V
UL, CSA: 600V
HD21.7 S2: 300V / 500V, 450V / 750V
Temperature Rating:
BS6231: 90°C (105°C for 15,000 hours)
UL, CSA: 105°C
Minimum Bending Radius: 6 x overall diameter
Note:
HD 21.7 S2 covers conductor sizes up to 35mm”, cables above this size aregenerally to the specification.
Where it is intended to connect cables contained within this datasheet toequipment or accessories confirmation should be obtained to ensure that they arecapable of withstanding the operating temperature of the cable.
